Data East Power Supply Capacitor Repair Kit for Board 520-5047

Description

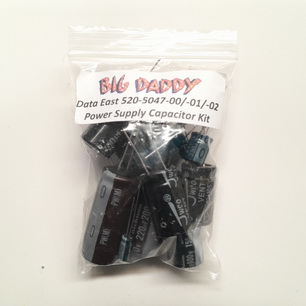

Data East Power Supply Capacitor Repair Kit for Board 520-5047

Another Big Daddy Repair Kit.

Full kit containing all the electrolytic capacitors on the Data East power supply 520-5047 version 00 through 02. If you need a kit for 520-5047-03, it’s coming soon. All of these caps are a higher quality than what some others are offering, Illinois Cap, Nichicon and Richey, which are custom made to order.

Includes;

1 X 1,000uf/25V HIGH TEMP radial cap for C1
1 X 100uf/50V HIGH TEMP radial cap for C2 (Note 1,3)
1 X 47uf/100V HIGH TEMP radial cap for C3 (Note 1)
4 X 4,700uf/25V HIGH TEMP radial cap for C4 (Note 2)
1 X 330uf/25V HIGH TEMP radial cap for C7 (Note 1,3)
1 X 150uf/100V HIGH TEMP radial cap for C8
2 X 220uf/200V HIGH TEMP radial cap for C10 & C11 (Note 4)
2 X 22uf/50V HIGH TEMP radial cap for C14 & C15

Note 1: It is critical that these caps, especially C2, are HIGH TEMP caps.
Note 2: All boards examined are designed to take a single 18,000uf axial or (4) smaller 4,700uf radial caps at this location.
Note 3: Schematics show 25V but 16V has been seen on many boards.
Note 4: Some boards may have 100uf or 150uf caps here, 220uf is preferred and an improvement.

A connector and fuse kit will soon be available.

Game Listing:

Checkpoint
Teenage Mutant Ninja Turtles
Batman
Star Trek 25th Anniversary
Hook
Rocky and Bullwinkle
Guns N’ Roses
Jurassic Park
Last Action Hero
Lethal Weapon 3
Star Wars
Tales from the Crypt
The Who’s Tommy
WWF Royal Rumble.
