Williams System 3-6 Sound Board (Type 1) Capacitor Kit

Description

Williams System 3-6 Sound Board (Type 1) Capacitor Kit

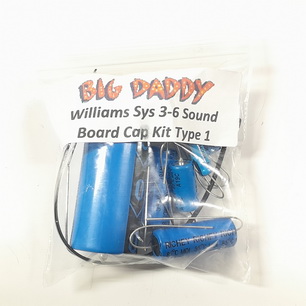

Another Big Daddy Repair Kit.

Contains all of the electrolytic caps on a Williams Sound board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement.

Please note information varies, not all games and sound board types they use have been confirmed.

Type 1, 1st Generation. No markings on the board, large capacitor is vertical. Volume control has 2″ shaft. Three (3) .156 connectors along the top, one fuse. Top picture to the left.

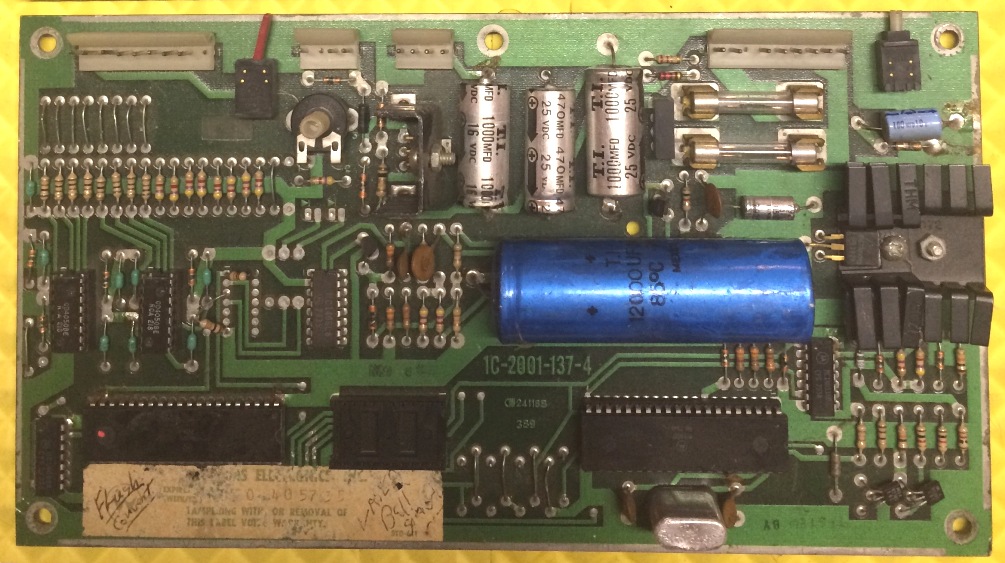

Type 1, 2nd Generation. Marked 1C-2001-137-4 on the board below the large horizontal capacitor. Small knob volume control. Four (4) .156 connectors along the top, two fuses.

Please refer to Gallery Photos.

(1) each 22uf/50V axial cap for C10
(1) each 470uf/16V axial cap for C13
(2) each 1000uf/25V axial cap for C14 & C30
(1) each 100uf/25V axial cap for C27
(1) each 12,000uf/25V axial cap for C29
(1) each zip tie for C29 (not used on all boards)
